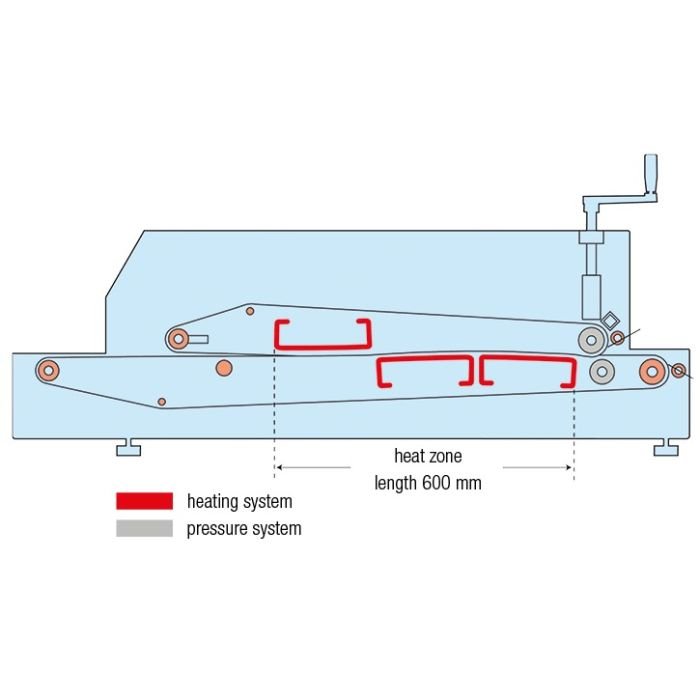

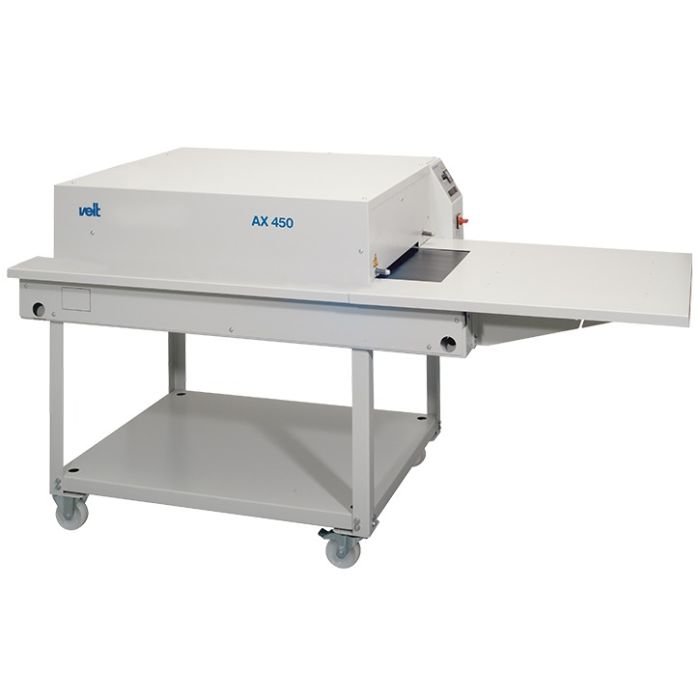

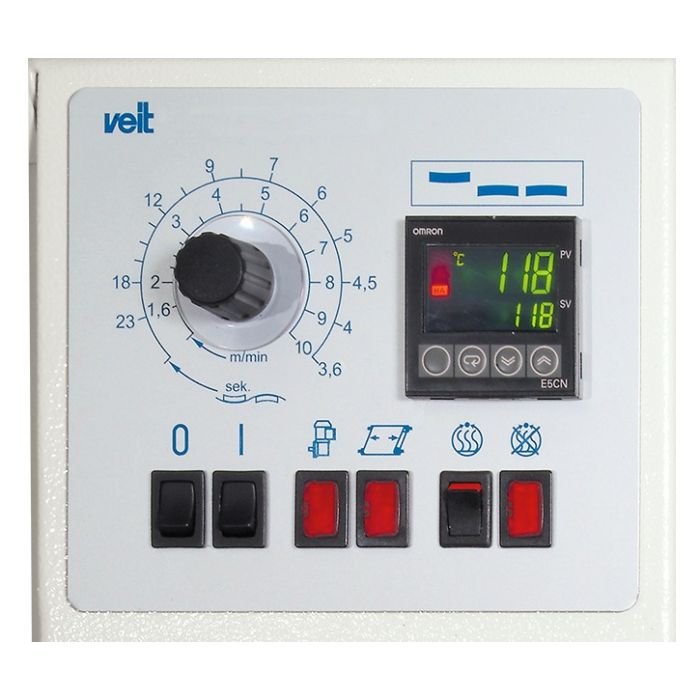

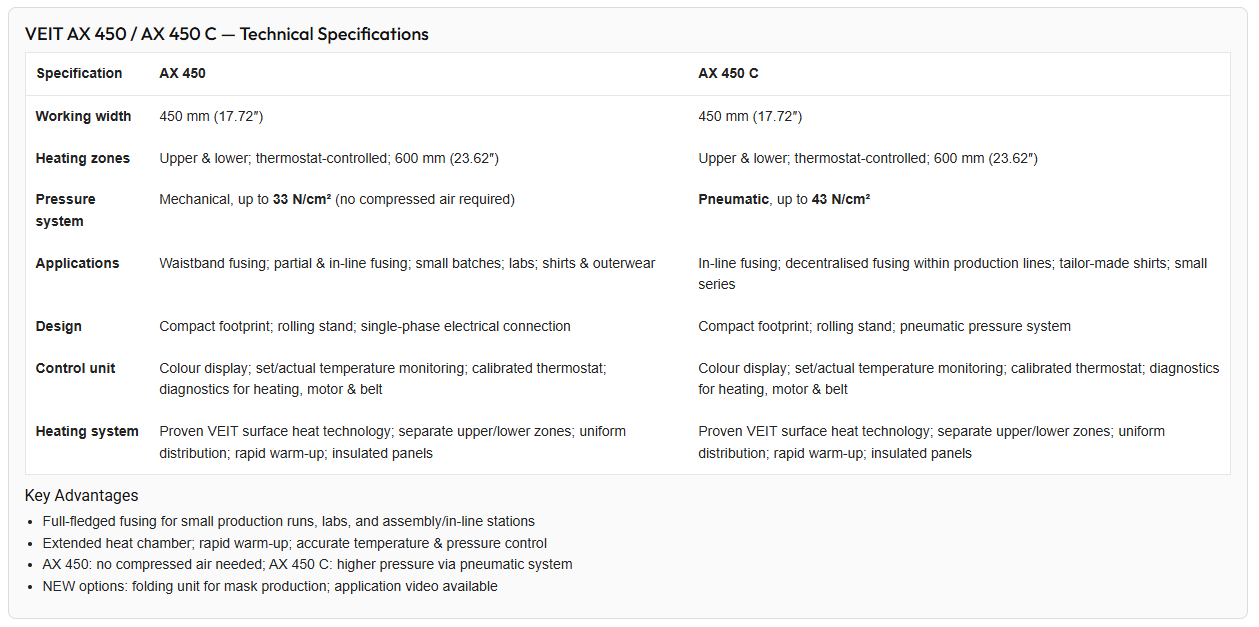

Despite its compact footprint, the AX 450 series delivers the capabilities of larger fusing machines—ideal for waistbands, dress shirts, sportswear, small batches, laboratories, and decentralized in-line fusing. Models & core specs AX 450: 450 mm working width; thermostat-controlled upper & lower heat zones (600 mm length); mechanical pressure up to 33 N/cm²; ideal for waistband and roll-to-roll/partial fusing; no compressed air required; single-phase electrical connection; rolling-stand design. AX 450 C: 450 mm working width; thermostat-controlled upper & lower heat zones (600 mm length); NEW pneumatic pressure system up to 43 N/cm²—optimized for in-line fusing and flexible production lines. Advantages Full-fledged fusing in a compact format—perfect for small runs, labs, and assembly lines. Fast warm-up and stable, accurate temperature & pressure for consistent bond quality. Optional folding unit for mask production; “enjoy watching the application video.” Can be used for partial fusing or decentralized, roll-to-roll applications. Control unit Clear color display with set/actual temperature monitoring and deviation alerts. Calibrated thermostat (handy for belt exchanges or different belt types). Unique-in-class diagnostic system covering heating elements, motor control, and belt control. Heating system Separate upper & lower heat zones for precise matching of fabric/interlining. Proven surface-heat technology for uniform temperature distribution. Minimal energy usage (each outlet on 16 A) with insulated panel elements for efficient heat transfer. Pressure systems AX 450 (mechanical): Precise pressure without compressed air; values specified in N/cm² per interfacing supplier requirements. AX 450 C (pneumatic): Higher max pressure for modern, individualized shirt production and flexible, decentralized in-line fusing—without compromising quality.
