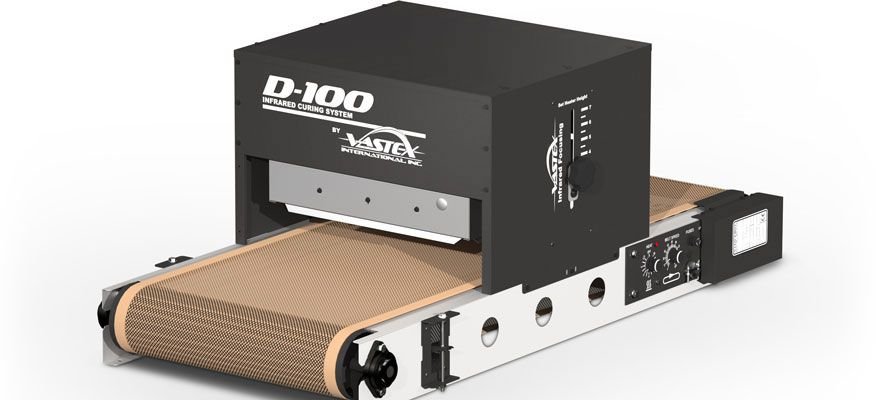

D100 industrial compact level infrared conveyor dryer
₹0.00
- Atkins thermal probe complete kit: Accurately measure ink temperatures to profile conveyor dryers
- Screen print donut probe: The “Donut” Screen Printing Probe was created specifically to satisfy the needs of today’s screen printers
- Temperature laser gun: Measures temperature of ink and/or substate
- Mobile equipment stands, including casters: Low Cost Stands for “tabletop” infrared conveyor dryers, screen exposing units and other screen-printing equipment
- 1 year electronic warranty and 15 years heater warranty
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
1 YEAR
Designed in United States
Download Brochure
For detailed product information click here
Details
- 46cm wide Teflon coated fibreglass belt with a tracking system
- Speed, temperature, heater height and tilt are adjustable
- 60 shirts per hour with plastisol
- Powerful infrared heater with tight coil pattern and heat shields
- Best warranty, high quality, exceptional service
- The total footprint is less than 2.44 sq.m
Specification
| D-100 | |
| Heater Warranty | 15 Year |
| Defect Warranty | 3 Year |
| Shirts / Hr Plastisol | 110+ |
| Shirts/hr wb/discharge | 50+ |
| Belt Speed | 0.6-7.4 FPM (0.18-2.3 MPM) |
| Exhaust (Free Air) | n/a |
| Exhaust Diameter | n/a |
| Overall Length | 46″ (117 cm) |
| Overall Width | 24″ (61 cm) |
| Overall Height | 24″ (61 cm) |
| Belt Width | 18″ (45.7 cm) |
| Chamber Length | 18″ (45.7 cm) |
| Chamber Infeed Width | 19.5″ (49.5 cm) |
| Chamber Infeed Height(adjustable) | 2″ – 7″
(5 – 17.7 cm) |
| Heat Range (@ Heater) | 0-750 F° (0-399 C°) @ 120 or 240V |
| Heater Size | 16″x16″(40.6×40.6 cm) |
| Total Wattage | 1,625 Watts |
| Cost/hr to operate
based on 10 cents/ kwh |
16 cents |
| Electrical Specs
Chamber |
120V / 12.5A / NEMA 5-15P 240V / 6.5A / 1 Ph. / NEMA 6-15P |
| Electrical Connection | Cordset Included |
| Optional Power Also available in 380 / 440 / 480 | 208V |
| Unit Weight | 89 lbs (41 kg) |
| Shipping Weight | Box 1 – 57 lbs (26 kg) Box 2 – 16 lbs (7.3 kg) Box 3 – 21 lbs (9.6 kg) Boxes on skid – 115 lbs (52 kg) |
| Shipping Dimensions | Box #1 – 51.5x25x8” (131x64x20 cm)
Box #2 – 21x21x7” (53x53x18 cm) Box #3 -25x18x6” (64x46x15 cm)On Skid – 52x26x22” (132x96x51cm) |
