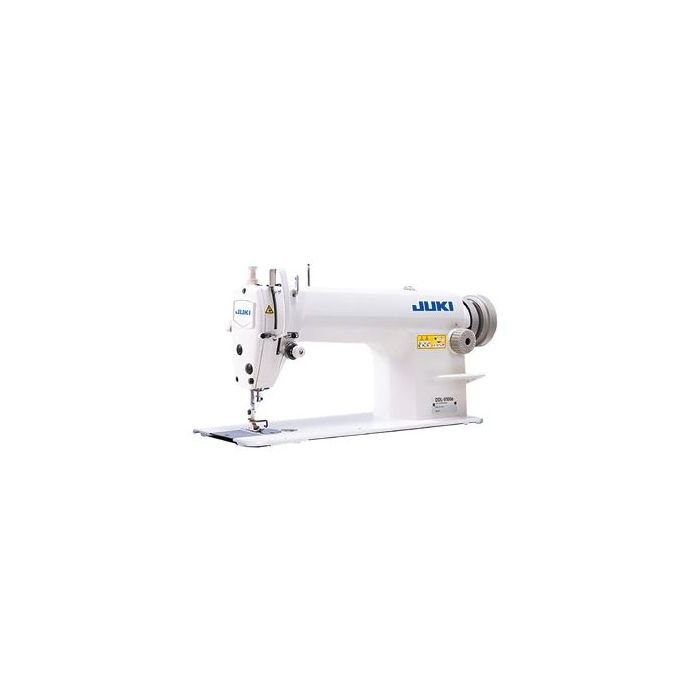

Juki DDL-8100eH Single Needle Lock Stitch Machine
₹45,000.00
Details
Description:
- By thoroughly investigating and modifying the sewing mechanisms in order to achieve low-tension sewing, the machine flexibly responds to various kinds of materials and produces perfect seams.
- The lockstitch machine designed with a new concept of sewing mechanism with outstanding responsiveness to materials

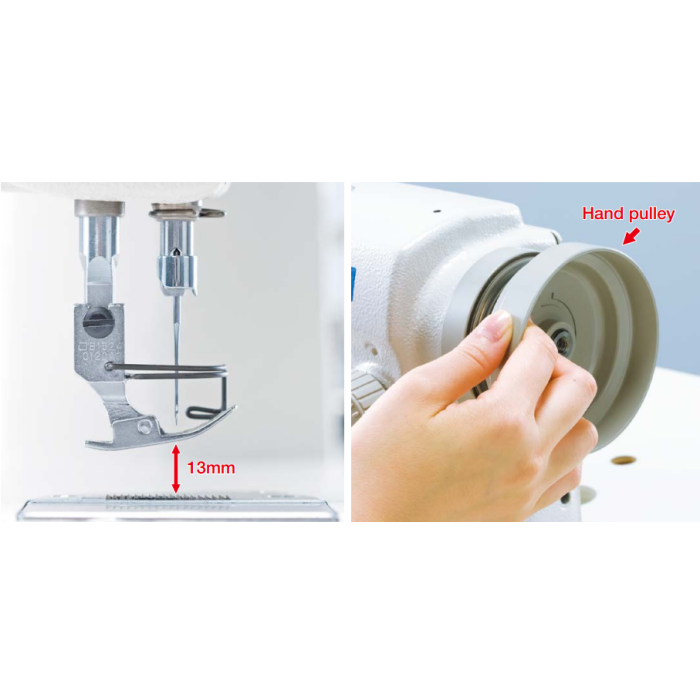

- In addition, by providing a presser foot with a 13mm higher lift, a light-touch stitch dial, uniquely designed hand pulley and other easy-to-operate functions, the burden on the operator is lightened and productivity increased.
- High Precision Stitch. stitch length can reach 0.1 mm controlled by stepping motor.
- Stitch length adjustment function can be locked just in case operator’s mis-operation.
- High Stitch Overlapping Ratio.
- Product Includes: Stand, Table and Motor
- Unit Of Measurement: Nos
Specification
|
Model name |
DDL-8100e, DDL-8100eB | DDL-8100eH |
| Application | Light- to Medium-weight | Heavy-weight |
| Max. sewing speed | 4,500 sti/min* | 4,000 sti/min* |
| Max. stitch length | 5mm | 5mm |
| Needle bar stroke | 30.7mm | 35mm |
| Lift of the presser foot | By hand: 5.5mm By knee: 13mm | By hand: 5.5mm By knee: 13mm |
| Needle | DB×1 (#14) #9～#18 | DB×1 (#21) #20～#23 |
| Feed dog | DDL-8100e: 3-row
DDL-8100eB: 3-row |
3-row |
| Hook | Automatic-lubricating full-rotary hook | Automatic-lubricating full-rotary hook |
| Lubrication | Automatic | Automatic |
| Lubricating oil | JUKI MACHINE OIL No. 7 (equivalent to ISO VG7) | JUKI MACHINE OIL No. 7 (equivalent to ISO VG7) |
| Weight of the machine head | 26kg | 26kg |
