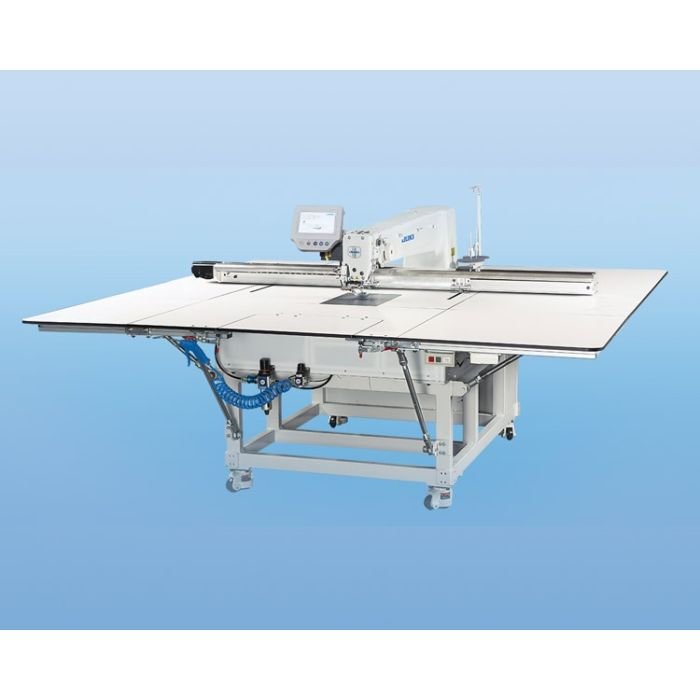

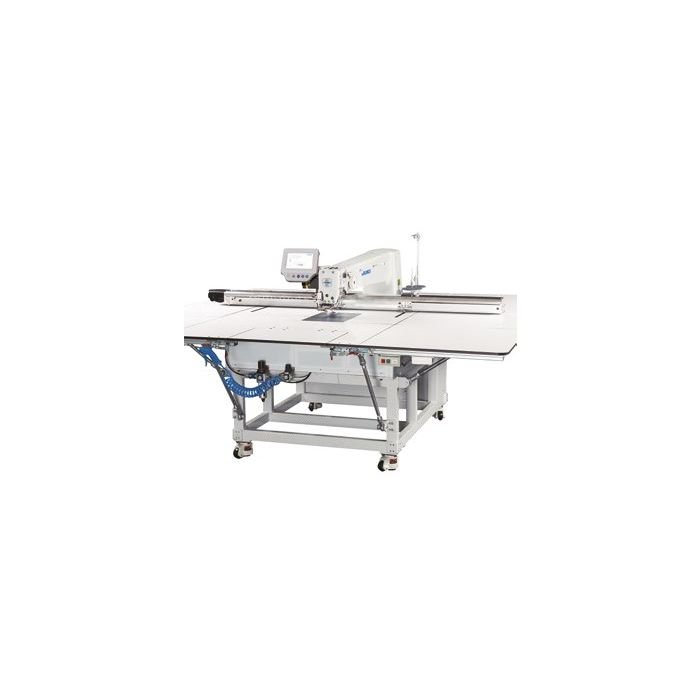

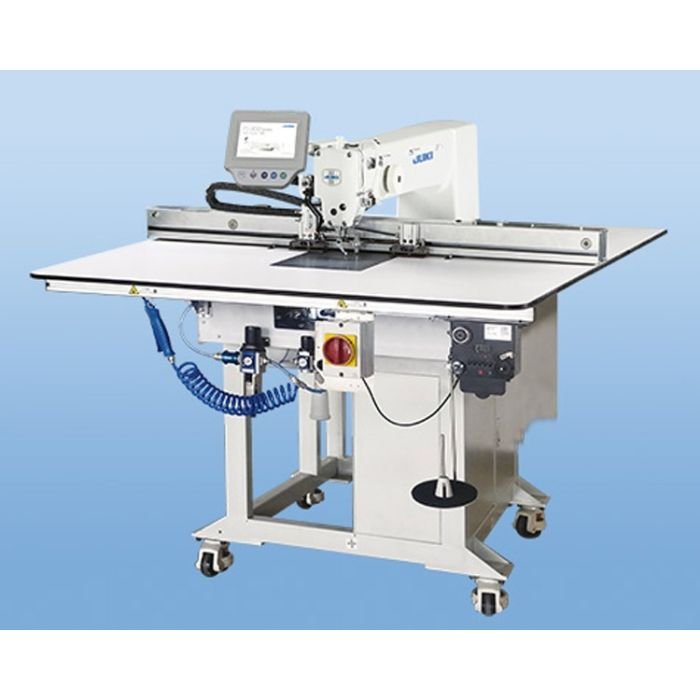

JUKI PS-800 Series Industrial Automatic/Computer Controlled Machine
- Maximum speed of 3000 stitches per minute
- Operation panel can store up to 999 sewing patterns
- The machine is available for purchase with different sewing areas including 1,300 mm × 850 mm, 800 mm × 450 mm, 600 mm × 450 mm, and 1,200 mm × 800 mm
- The PS-800-8045 is space-saving and compact.
- The panel supports commonly-used sewing data formats such as DXF, AI, PLT, and DST, making it easier for operators to use their existing patterns
- Dry-head mechanism prevents oil stains on the material
- Cloth trimmer includes 2 knives and a laser
- Rotary knife can be used to cut straight and curved portions of the material
- Both heavy-weight and soft materials can be cut with the laser cutter
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 MONTHS
Designed in Japan
Download Brochure
For detailed product information click here
Details
The simple operation panel makes the JUKI Pattern Seamer PS-800S easy to use. The multi-use machine has a dry-head technology that prevents oil stains on materials and produces smooth and faultless seams. The ease of operation, multifunctionality, and increased productivity make this machine popular among industrial sewing machines.
- Uses the RFID (Radio Frequency Identification) system for instantaneous reading of sewing data
- Dry-head technology in the frame eliminates oil-stains
- The height of the lower dead end of the intermediate presser can be adjusted via the control panel, improving efficiency
- Product includes stand, table and motor
Specification
| Model name | PS-800SB13085 | PS-800SB8045 | PS-800HB8045 | PS-800SB6045 | PS-800SS12080 | PS-800HS12080 |
| Sewing area | 1,300 mm × 850 mm | 800 mm × 450 mm | 600 mm × 450 mm | 1,200 mm × 800 mm | ||
| Feeding type | Double stepping motor Belt Drive | Screw drive (ball screw) | ||||
| Max. sewing speed | 3,000 stitches per minute* | |||||
| Stitch length | 0.5 – 12.7 mm | |||||
| Hook | Full-rotary double-capacity hook | |||||
| Lift / Stroke of intermediate presser |
Lifting amount: 20 mm / Stroke: Standard 4 mm | |||||
| Variable lower position of the intermediate presser |
0 – 9 mm | |||||
| Needle | DB × 1 #8 (7#~14#) |
DB × 1 #8 (7#~14#) |
DP × 17 #21 (18#~23#) |
DB × 1 #8 (7#~14#) |
DB × 1 #8 (7#~14#) |
DP × 17 #21 (18#~23#) |
| Storage of pattern data in the memory |
Max. 999 patterns (80,000 stitches/pattern) | |||||
| Number of identifiable patterns |
999 patterns | |||||
| Program input mode | USB | |||||
| File format | Convert DXF / AI / PLT / DST format to SLW format with editing soft wear | |||||
| Weight | 500Kg | 450Kg | 320Kg | 750Kg | ||
| Dimensions | 2,190mm (W) × 2,100mm (L ) × 1,250mm (H) |
1,200mm (W)× 1,325mm (L)× 1,250mm (H) | 1,560mm (W)× 1,200mm (L) × 1,250mm (H) |
2,180mm (W) × 2,185mm (L) × 1,250mm (H) | ||
