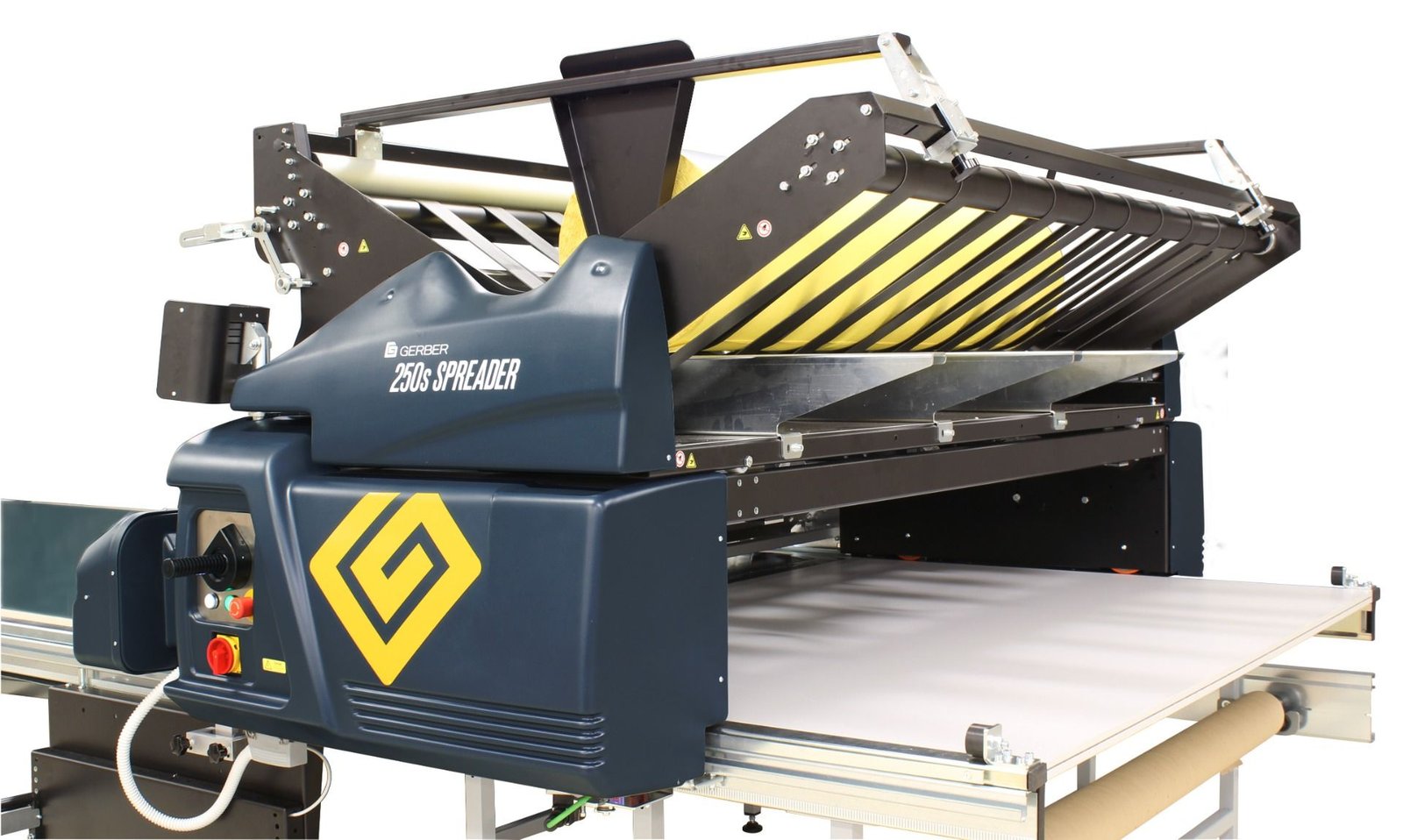

Lectra Gerber Technology Industrial Gerber Spreader 250s Cutting
₹0.00
Flexible to fit in your needs:

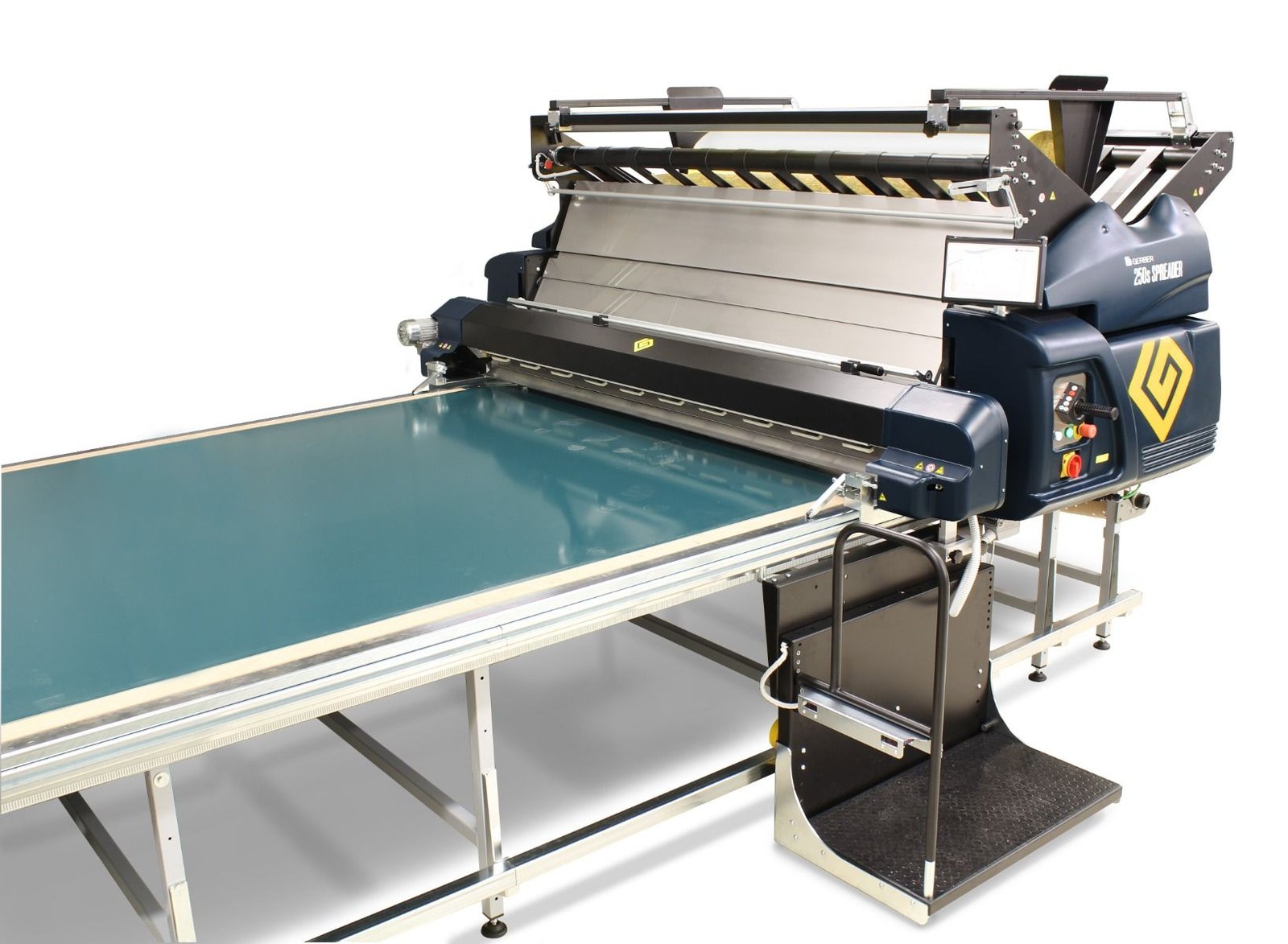

- The GERBERspreader 250s is designed to work smoothly with Gerber’s G model static (air flotation) and conveyor spreading tables, delivering a whole cutting room solution
- The system is available in widths of 160cm (63in.), 180cm (71in.), 200cm (79in.), and 220cm (87in.)
Built-in intelligence:
- To expedite operator training and reduce setup time, the system is controlled via a touch screen panel that helps the user through the process of entering marker lengths and overlap/splice points
- A multi-function throttle allows the operator to manage material threading/rewinding/cutting as well as spreading start/stop with one hand
Fast and safe:
- To ensure worker safety, the spreader’s cradle feed system has an automatic cradle tilt, which allows for quick and easy loading/unloading and threading/rewinding of material rolls
- An optional loading mechanism raises large fabric rolls from the floor to the spreader cradle and vice versa, making it simple and safe to load and unload rolls
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 MONTHS
Designed in Italy
Download Brochure
For detailed product information click here
Details
- Sensors on both sides of the GERBERspreader stop the system promptly when an obstruction is in its path
- To achieve correct selvage alignment, the system includes adjustable infrared photocells
- To accommodate thicker spreads, a variable speed, two-way cutting device intelligently starts working automatically
- For automobile and transportation seating applications, a big cradle alternative is provided in which foam is bonded to a face textile (foam laminate) and spread from extremely large rolls
- The device can progressively distribute up to 50 markers (parts) and 50 colours and stores up to 10 unique fabric settings
- Optional attachments are available for spreading reverse-wound or flat folded material, as well as spreading material face-to-face
Specification
| Characteristics | ||
| Maximum roll diameter | 90 cm* | 35.4 in* |
| Maximum roll weight | 250 kg | 550 lbs |
| Spreading height – one way | 22 cm | 8.66 in |
| Spreading height – zig-zag | 12 cm | 4.72 in |
| Maximum speed per minute | 100 m | 328 ft |
| Loading height over table top | 600 mm | 23.6 in |
| Total height over table top | 1088 mm | 42.83 in |
| Spreader weight | 550 kg | 1212.5 lbs |
| Absorbed power | 4,2 kWh | |
